介绍了一下fluent里的动网格相关UDF

动网格相关宏

DEFINE_CG_MOTION

使用

#define DEFINE_CG_MOTION(name, dt, vel, omega, time, dtime)   \
  EXTERN_C void name(Dynamic_Thread *dt, real vel[], real omega[], real time, real time)

Type	Parameter	Notes
symbol	name	UDF名字
Dynamic_Thread*	dt	指向动网格相关属性结构体的指针
real	vel[ ]	线速度。三个分量为xyz方向速度
real	omega[ ]	角速度。三个分量为以xyz轴为转轴的角速度
real	time	当前时间
real	dtime	时间步
void	return	无返回值

typedef struct dynamic_thread_struct
{
  Dynamic_Thread_Rigid_Body_State current_state;
  Dynamic_Thread_Rigid_Body_State tmp_state;
  Dynamic_Thread_Rigid_Body_State init_state;

  real dir_ref[3];                         /* reference direction of motion */
  real dir_prev[3];                        /* previous direction of motion */
  real axis[3];                            /* body-fixed axis of motion */
  real refo[3];                            /* reference point */

  real len[3];                             /* length scales (s0, s1, skew) */
  real h[2];                               /* (hmin) (hmax), if applicable */

  real geom_origin[3];                     /* geom.: origin */
  real geom_axis[3];                       /* geom.: axis/normal */
  real geom_radius;                        /* geom.: radius */
  char geometry_name[132];                 /* geometry of geometry function */
  cxboolean geom_feature_p;                /* geom.: use feature detection */
  real geom_feature_angle;                 /* geom.: feature angle */

  cxboolean sop_comp;                      /* solver options for system coupling/six dof switch */
  real sop_scale;                          /* solver option scaling factor */
  char sop_type_name[132];                 /* solver option type name: ap, cell */
  int  sop_type;                           /* 0-volume-based, 1-coefficient-based, 2-udf (not implemented yet) */

  int layer[2];                            /* layering action */
  real layer_factor;                       /* layering split/collapse factor */

  int type;                                /* dynamic zone type */
  int udf_type;                            /* mover, motion, 6DOF */
  int face_remesh_count;                   /* remesh counter */
  int face_remesh_action;                  /* split or collapse */

  cxboolean sliding;                       /* allow nodes to slide/move? */
  cxboolean remesh;                        /* allow faces/cells to be remesh? */
  cxboolean layering;                      /* allow layering? */
  cxboolean moving;                        /* freeze node motion? */
  cxboolean remesh_globals_p;              /* use global remesh parameters */
  int sliding_method;                      /* method to slide */
  int sliding_elements;                    /* spring smoothing element type */
  int remeshing_method;                    /* method(s) to remesh */
  cxboolean boundary_layer_deform;         /* deform/move adjacent prisms
                                              with boundary */
  cxboolean user_defined_deform;           /* allow deformation of user defined
                                              zones */
  cxboolean bc_exclude_motion;             /* option to exclude boundary motion
                                              in boundary condition */

  char profile_udf_name[132];              /* udf or profile name */
  void (*update)();                        /* pointer to motion function */

  struct thread_struct *thread;            /* face/cell thread */

  cxboolean separate_region;               /* remesh region separately? */
  int nloops;                              /* number of moving loops */
  struct edge_loop_struct *loops;          /* loop data structure */
  struct objp_struct *lnodes;              /* pointer to loop nodes */

  cxboolean sdof_p;                        /* use 6DOF to compute motion */
  cxboolean sdof_contribute_p;             /* 6DOF: contribution of thread */

  cxboolean perdisp_p;                     /* use Periodic Displacement to compute motion */
  cxboolean surf_rev_done;                 /* Building surface of revolution done */
  int trim_size;                           /* number of interpolating points for surf revolution */
  real *axcrd;                             /* axial coordinate for surf of revolution */
  real *radcrd;                            /* radial coordinate for surf of revolution */

  cxboolean nested_p;
  struct thread_struct *nest_thread;       /* udf motion is specified on top of the motion of nest_thread */
  cxboolean nested_local_rot_p;            /* relative motion is specifed in local */
  cxboolean nested_local_tran_p;     	   /* coordinates or absolute coordinates */

  char h_udf_name[2][64];                  /* udf name for non-constant layer
                                              height [0], [1] (corresponding
                                              to height0 and height1) */

  char contact_udf_name[64];               /* UDF name for contact detection */

  real (*tmp_cg)[3];
  real *tmp_theta;
  real tmp_omega[3];                       /* zone-motion variables */

  unsigned int update_state;               /* indicates if thread has been
                                              remeshed, smoothed, etc. */

  real gocart_param[5];                    /* GoCart remeshing parameters
                (max, growth rate, skew,
                aspect ratio, remesh interval) */
  cxboolean gocart_prisms_p;               /* remesh GoCart with inflation
                                              layers */
  Prism_Parameters gocart_prism_param;     /* GoCart prism parameters */

  real tmp_r1;                             /* temporary memory */
  real tmp_r2;
  int tmp_i1;

  struct dynamic_thread_struct *next;      /* pointer to next */
} Dynamic_Thread;

样例

Example.1 刚体平动

#include "udf.h"
/*刚体平动示例*/
DEFINE_CG_MOTION(move, dt, vel, omega, time, dtime)
{
    /*reset velocity*/
    NV_S(vel, =, 0.0);
    NV_S(omega, =, 0.0);
    /*set v_x = 5e-3m/s*/
    vel[0] = 5e-3;
}

Example.2 刚体转动

#include "udf.h"
/*刚体转动示例*/
DEFINE_CG_MOTION(rotate, dt, vel, omega, time, dtime) {
    /*reset velocity*/
    NV_S(vel, =, 0.0);
    NV_S(omega, =, 0.0);
    /*set omega_xy = 0.2 rad/s*/
    omega[2] = 0.2;
}

Example.3 随时间变化的刚体运动

#include "udf.h"
static real v_prev = 0.0;
static real time_prev = 0.0;
/*刚体运动随时间变化示例*/
DEFINE_CG_MOTION(acceleration, dt, vel, omega, time, dtime)
{
    real dv;
    /*reset velocity*/
    NV_S(vel, =, 0.0);
    NV_S(omega, =, 0.0);
    dv = dtime * 1e-3;
	if(time < 1){
        omega[2] = 0.1;
    }
	else if(time > (time_prev+EPSILON)){
        v_prev += dv;
        time_prev = time;
    }
    vel[0] = v_prev;
}

Example.4 实现单向流体-刚体运动耦合

在每个迭代步末尾计算物体当前所受作用力 $\mathbf{F}$
计算加速度 $a=F/m$
计算当前速度 $v_{t+1}=v_t+a\Delta t$

/*实现简单的流体与刚体运动的单向耦合*/
#include "udf.h"

/*****define some constants*****/
#define MASS 1
#define TIME_STEP 0.0001
/********************/

static real current_vel=0;

DEFINE_CG_MOTION(valva, dt, vel, omega, time, dtime)
{
    real dv;
    /* reset velocities */
    NV_S(vel, =, 0.0);
    NV_S(omega, =, 0.0);
    vel[2] = current_vel;
}
/*利用UDF获取作用力*/
DEFINE_EXECUTE_AT_END(compute_vel) {
    Domain *domain=Get_Domain(1);
    int domain_id_send_to_node;
    real force_temp = 0;
    real total_force_z = 0;
    real dv=0;

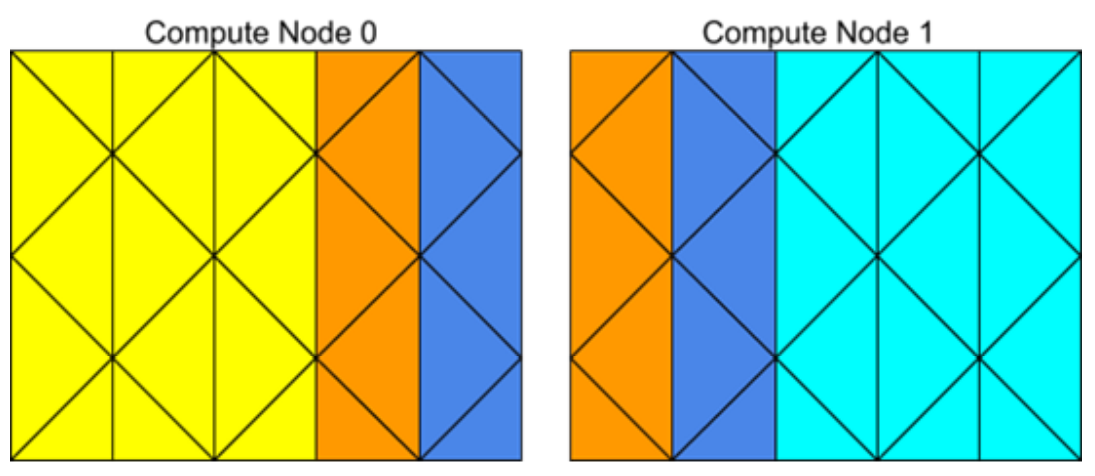

/*************并行版循环**************/
//此处定义仅在计算节点中使用的变量
#if !RP_HOST
    Thread *thread;
    face_t face;
    real area[ND_ND];
#endif
//将需要进行循环的区域ID分发到节点上
    domain_id_send_to_node = 10;

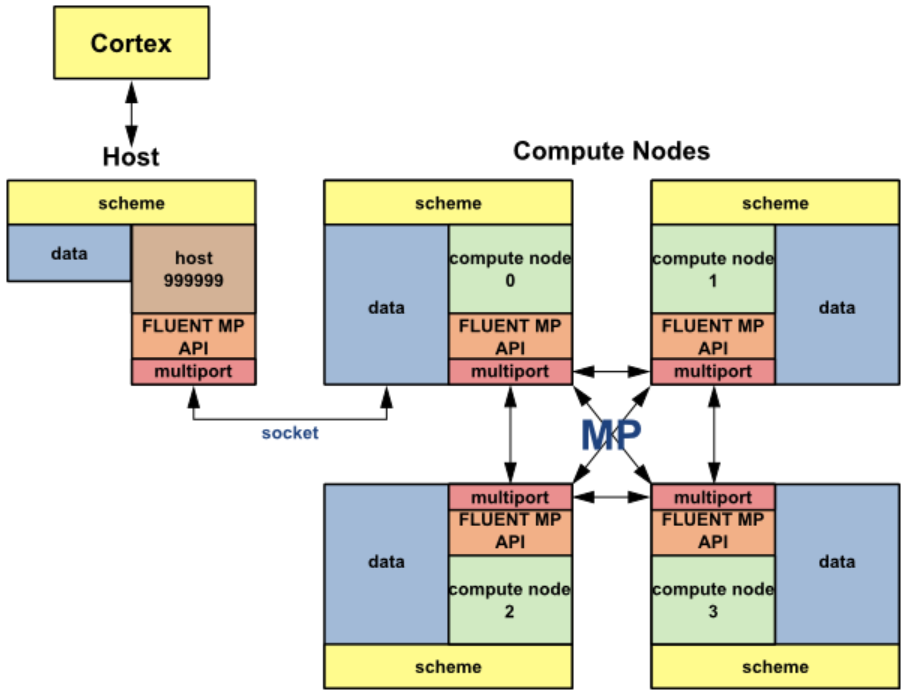

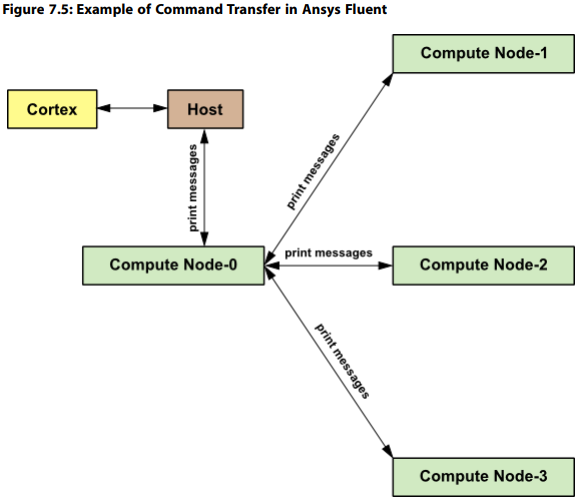

    /*主机与节点的数据交换*/
    host_to_node_int_1(domain_id_send_to_node);
#if !RP_HOST
    thread = Lookup_Thread(domain, domain_id_send_to_node);
    begin_f_loop(face, thread)

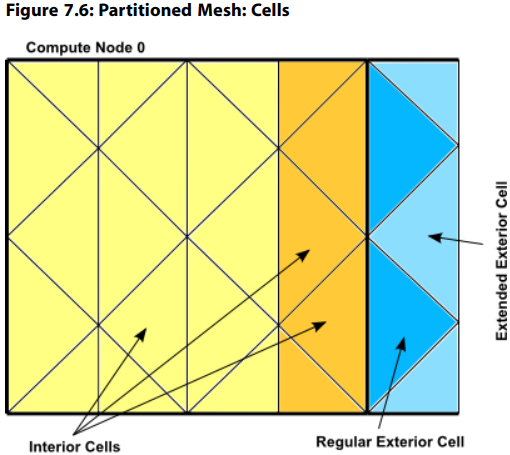

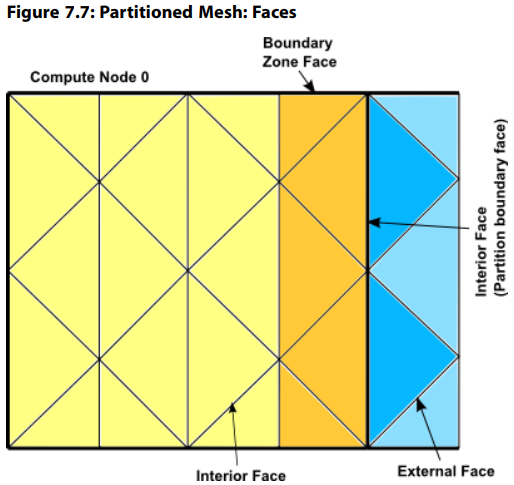

        /*边界可能进行两次计算，利用PRINCIPAL_FACE_P(face, thread)壁面*/
    if (PRINCIPAL_FACE_P(face, thread)) {
        F_AREA(area, face, thread);
        force_temp += area[2] * F_P(face, thread);
    }
    end_f_loop(face, thread)
#if RP_NODE /* Perform node synchronized actions here */

        force_temp = PRF_GRSUM1(force_temp);
#endif /* RP_NODE */
#endif /* !RP_HOST */
/**********************************/
    total_force_z += force_temp;
    dv = total_force_z / MASS * TIME_STEP;
    current_vel+=dv;
}

/*利用Report definition获取作用力*/
DEFINE_EXECUTE_AT_END(compute_vel_from_definition)
{
    /*使用Get_Report_Definition_Values需要的变量*/
    int nrOfvalues = 0;
    real *values;
    int *ids;
    int index;
    int counter;
    /*计算当前速度需要的变量*/
    real dv;
    real total_force_z;
    /*********获取报告定义值***********
    //第一次调用，获取values的个数
    int rv = Get_Report_Definition_Values("report-def-0", 1, &nrOfvalues, NULL,
                                          NULL, NULL);
    if (rv == 0 && nrOfvalues) {
        Message("Report definition evaluated at iteration has %d values\n",
                nrOfvalues);
    /*为 values 和 ids 分配内存.*/
    values = (real *)malloc(sizeof(real) * nrOfvalues);
    ids = (int *)malloc(sizeof(int) * nrOfvalues);
    /*第二次调用，获取 values 和 ids.*/
    rv = Get_Report_Definition_Values("report-def-0", 1, NULL, values, ids,
                                      &index);
    /*calculate current velocity*/
    total_force_z=values[0];
    dv = total_force_z / MASS * TIME_STEP;
    current_vel += dv;
    /*释放内存*/
    free(values);
    free(ids);
    } else {
        /*不存在或还未求值，调用失败.*/
        if (rv == 1) {
            Message("report definition: %s does not exist\n", "report-def-0");
        } else if (nrOfvalues == 0) {
            Message("report definition: %s not evaluated at iteration level\n",
                    "report-def-0");
        }
        return;
    }
}

补充知识

向量和维度操作

D : demension
S : scalar
V : vector
T : Tensor

对于2D求解器，将存在PR_2D宏定义。对于3D求解器，将存在PR_3D宏定义。

#if RP_3D
	/*仅3D求解器可使用的操作*/
#endif

ND_ 分量操作宏

#if RP_3D
# define ND_ND 3
# define ND_VEC(x,y,z)x,y,z
#else
# define ND_ND 2
# define ND_VEC(x,y,z)x,y
#endif
#define ND_3 3
#define NV_VEC(a)a[ND_ND]

对于2D求解器，ND_ND=2。对于3D求解器，ND_ND=3。

对于2D求解器，NV_VEC将忽略第三个分量。

NV_VEC(a)定义一个名为a的符合当前维度的向量。

/********************
第一个运算符只能为等号相关的符号
如=, +=, /=
********************/

#define ND_S(a0,a1,a2,EQ,s)ND_VEC((a0)EQ(s),(a1)EQ(s),(a2)EQ(s))
//分量 与 标量 操作
//ND_S(a0,a1,a2,=,2);=>(a0,a1,a2)=(2,2,2);
#define ND_D(a0,a1,a2,EQ,x0,x1,x2)ND_VEC((a0)EQ(x0),(a1)EQ(x1),(a2)EQ(x2))
//分量 与 另一个分量 操作
//ND_D(a0,a1,a2,=,x0,x1,x2);=>(a0,a1,a2)=(x0,x1,x2);
#define ND_V(a0,a1,a2,EQ,x)ND_D(a0,a1,a2,EQ,(x)[0],(x)[1],(x)[2])
//分量 与 向量 操作
//ND_V(a0,a1,a2,=,x); (a0,a1,a2)=x;
#define ND_VS(a0,a1,a2,EQ,x,S,s)ND_VEC((a0)EQ(x)[0]S(s),(a1)EQ(x)[1]S(s),(a2)EQ(x)[2]S(s))
//分量 与 向量 与 标量 操作
//ND_VS(a0,a1,a2,=,x,*,2);=>(a0,a1,a2)=(x[0]*2,x[1]*2,x[2]*2)
#define ND_DS(a0,a1,a2,EQ,x0,x1,x2,S,s)ND_VEC((a0)EQ(x0)S(s),(a1)EQ(x1)S(s),(a2)EQ(x2)S(s))
//分量 与 分量 与 标量 操作
#define ND_DD(a0,a1,a2,EQ,x0,x1,x2,V,y0,y1,y2) ND_VEC((a0)EQ(x0)V(y0),(a1)EQ(x1)V(y1),(a2)EQ(x2)V(y2))
//分量 与 分量 与 分量 操作
#define ND_VV_S(a0,a1,a2,EQ,x,V,y,S,s)ND_VEC((a0)EQ((x)[0]V(y)[0])S(s),(a1)EQ((x)[1]V(y)[1])S(s),(a2)EQ((x)[2]V(y)[2])S(s))
//分量-向量-向量-标量
#define ND_VD_S(a0,a1,a2,EQ,x,V,y0,y1,y2,S,s)ND_VEC((a0)EQ((x)[0]V(y0))S(s),(a1)EQ((x)[1]V(y1))S(s),(a2)EQ((x)[2]V(y2))S(s))
//分量-向量-分量-标量
#define ND_DV_S(a0,a1,a2,EQ,x0,x1,x2,V,y,S,s)ND_VEC((a0)EQ((x0)V(y)[0])S(s),(a1)EQ((x1)V(y)[1])S(s),(a2)EQ((x2)V(y)[2])S(s))
//分量-分量-向量-标量
#define ND_DD_S(a0,a1,a2,EQ,x0,x1,x2,V,y0,y1,y2,S,s)ND_VEC((a0)EQ((x0)V(y0))S(s),(a1)EQ((x1)V(y1))S(s),(a2)EQ((x2)V(y2))S(s))
//分量-分量-分量-标量
#define ND_DS_DS(a0,a1,a2,EQ,x0,x1,x2,SX,sx,V,y0,y1,y2,SY,sy)ND_VEC((a0)EQ(((x0)SX(sx))V((y0)SY(sy))),(a1)EQ(((x1)SX(sx))V((y1)SY(sy))),(a2)EQ(((x2)SX(sx))V((y2)SY(sy))))
//分量-分量-标量-分量-标量
#define ND_DS_VS(a0,a1,a2,EQ,x0,x1,x2,SX,sx,V,y,SY,sy)ND_VEC((a0)EQ(((x0)SX(sx))V((y)[0]SY(sy))),(a1)EQ(((x1)SX(sx))V((y)[1]SY(sy))),(a2)EQ(((x2)SX(sx))V((y)[2]SY(sy))))
//分量-分量-标量-向量-标量

#if RP_3D
# define ND_OP(OP,x,y,z)((x)OP(y)OP(z))
#else
# define ND_OP(OP,x,y,z)((x)OP(y))
#endif
//对所有分量的操作
#define ND_SET(x0,x1,x2,y0,y1,y2)ND_D(x0,x1,x2,=,y0,y1,y2)
//两个分量相等
//(x0,x1,x2)=(y0,y1,y2);
#define ND_SUM(x0,x1,x2) ND_OP(+,x0,x1,x2)
//分量求和
//2D: x0+x1
//3D: x0+x1+x2
#define ND_DOT(x0,x1,x2,y0,y1,y2)ND_OP(+,(x0)*(y0),(x1)*(y1),(x2)*(y2))
//分量点乘
//(x0,x1,x2)·(y0,y1,y2);
#define ND_MAG2(x0,x1,x2)ND_DOT(x0,x1,x2,x0,x1,x2)
//分量模的平方
//|(x0,x1,x2)|^2
#define ND_MAG(x0,x1,x2)sqrt(ND_MAG2(x0,x1,x2))
//分量模
//|(x0,x1,x2)|
#if RP_3D
# define ND_CROSS_X(x0,x1,x2,y0,y1,y2)(((x1)*(y2))-((y1)*(x2)))
//叉乘的x分量
# define ND_CROSS_Y(x0,x1,x2,y0,y1,y2)(((x2)*(y0))-((y2)*(x0)))
//叉乘的y分量
#else
/* (x0,x1,0) X (y0,y1,0) */
# define ND_CROSS_X(x0,x1,x2,y0,y1,y2)(0.0)
# define ND_CROSS_Y(x0,x1,x2,y0,y1,y2)(0.0)
//对2D来说，叉乘的x,y分量均为0
#endif
# define ND_CROSS_Z(x0,x1,x2,y0,y1,y2)(((x0)*(y1))-((y0)*(x1)))
//叉乘的z分量
//分量叉乘
#define NDD_MAX(a0,a1,a2,b0,b1,b2)ND_VEC(MAX((a0),(b0)),MAX((a1),(b1)),MAX((a2),(b2)))
#define NDD_MIN(a0,a1,a2,b0,b1,b2)ND_VEC(MIN((a0),(b0)),MIN((a1),(b1)),MIN((a2),(b2)))
#define ND_MAX(a0,a1,a2,b0,b1,b2)ND_D((a0),(a1),(a2),=,MAX((a0),(b0)),MAX((a1),(b1)),MAX((a2),(b2)))
#define ND_MAX(a0,a1,a2,b0,b1,b2)ND_D((a0),(a1),(a2),=,MAX((a0),(b0)),MAX((a1),(b1)),MAX((a2),(b2)))
#define ND_MIN(a0,a1,a2,b0,b1,b2)ND_D((a0),(a1),(a2),=,MIN((a0),(b0)),MIN((a1),(b1)),MIN((a2),(b2)))

NV_ 向量操作宏

#define NV_S(a,EQ,s)ND_VEC((a)[0]EQ(s),(a)[1]EQ(s),(a)[2]EQ(s))
//a = (s,s,s)
#define NV_V(a,EQ,x)ND_VEC((a)[0]EQ(x)[0],(a)[1]EQ(x)[1],(a)[2]EQ(x)[2])
//a = x (向量)
#define NV_D(a,EQ,x0,x1,x2)ND_D((a)[0],(a)[1],(a)[2],EQ,x0,x1,x2)
//a = (x0,x1,x2)
#define NV_VS(a,EQ,x,S,s)ND_VEC((a)[0]EQ(x)[0]S(s),(a)[1]EQ(x)[1]S(s),(a)[2]EQ(x)[2]S(s))
#define NV_DS(a,EQ,x0,x1,x2,S,s)ND_VEC((a)[0]EQ(x0)S(s),(a)[1]EQ(x1)S(s),(a)[2]EQ(x2)S(s))
#define NV_VV(a,EQ,x,V,y)ND_VEC((a)[0]EQ(x)[0]V(y)[0],(a)[1]EQ(x)[1]V(y)[1],(a)[2]EQ(x)[2]V(y)[2])
#define NV_DD(a,EQ,x0,x1,x2,V,y0,y1,y2) ND_VEC((a)[0]EQ(x0)V(y0),(a)[1]EQ(x1)V(y1),(a)[2]EQ(x2)V(y2))
#define NV_DV(a,EQ,x0,x1,x2,V,y) ND_VEC((a)[0]EQ(x0)V(y)[0],(a)[1]EQ(x1)V(y)[1],(a)[2]EQ(x2)V(y)[2])
#define NV_VV_S(a,EQ,x,V,y,S,s)ND_VEC((a)[0]EQ((x)[0]V(y)[0])S(s),(a)[1]EQ((x)[1]V(y)[1])S(s),(a)[2]EQ((x)[2]V(y)[2])S(s))
#define NV_DV_S(a,EQ,x0,x1,x2,V,y,S,s)ND_VEC((a)[0]EQ((x0)V(y)[0])S(s),(a)[1]EQ((x1)V(y)[1])S(s),(a)[2]EQ((x2)V(y)[2])S(s))
#define NV_DD_S(a,EQ,x0,x1,x2,V,y0,y1,y2,S,s)ND_VEC((a)[0]EQ((x0)V(y0))S(s),(a)[1]EQ((x1)V(y1))S(s),(a)[2]EQ((x2)V(y2))S(s))
#define NV_V_VS(a,EQ,x,V,y,S,s)ND_VEC((a)[0]EQ(x)[0]V((y)[0]S(s)),(a)[1]EQ(x)[1]V((y)[1]S(s)),(a)[2]EQ(x)[2]V((y)[2]S(s)))
#define NV_VS_VS(a,EQ,x,SX,sx,V,y,SY,sy)ND_VEC((a)[0]EQ(((x)[0]SX(sx))V((y)[0]SY(sy))),(a)[1]EQ(((x)[1]SX(sx))V((y)[1]SY(sy))),(a)[2]EQ(((x)[2]SX(sx))V((y)[2]SY(sy))))

#define NV_OP_V(a,EQ,f,b)ND_VEC((a)[0]EQ(f((b)[0])),(a)[1]EQ(f((b)[1])),(a)[2]EQ(f((b)[2])))
//a=f(b)
//f(b)=(f(b[0]),f(b[1]),f(b[2]))

#define NVD_MAX(a,b)ND_VEC(MAX((a)[0],(b)[0]),MAX((a)[1],(b)[1]),MAX((a)[2],(b)[2]))
#define NVD_MIN(a,b)ND_VEC(MIN((a)[0],(b)[0]),MIN((a)[1],(b)[1]),MIN((a)[2],(b)[2]))
#define NV_MAX(a,b)NV_D((a),=,MAX((a)[0],(b)[0]),MAX((a)[1],(b)[1]),MAX((a)[2],(b)[2]))
#define NV_MIN(a,b)NV_D((a),=,MIN((a)[0],(b)[0]),MIN((a)[1],(b)[1]),MIN((a)[2],(b)[2]))

#define NV_MIN_I(v)((v)[0]<(v)[1]?((v)[0]<(v)[2]?0:2):((v)[1]<(v)[2]?1:2))
//向量v最小分量的索引
//v[3]={1,2,3}
//NV_MIN_I(v)=>1;

#define NV_SET(x, y)ND_SET(x[0], x[1], x[2], y[0], y[1], y[2]);
//x=y;
#define NV_DOT(x,y)ND_OP(+,(x)[0]*(y)[0],(x)[1]*(y)[1],(x)[2]*(y)[2])
//x·y
#define NV_MAG2(x)NV_DOT(x,x)
//|x|^2
#define NV_MAG(x)sqrt(NV_MAG2(x))
//|x|
#define NV_DST2(x1,x2)ND_OP(+,SQR((x2)[0]-(x1)[0]),SQR((x2)[1]-(x1)[1]),SQR((x2)[2]-(x1)[2]))
//|x1-x2|^2
#define NV_DST(x1,x2)sqrt(NV_DST2(x1,x2))
//|x1-x2|^2
#define NV_CROSS_X(x,y)ND_CROSS_X(x[0],x[1],x[2],y[0],y[1],y[2])
#define NV_CROSS_Y(x,y)ND_CROSS_Y(x[0],x[1],x[2],y[0],y[1],y[2])
#define NV_CROSS_Z(x,y)ND_CROSS_Z(x[0],x[1],x[2],y[0],y[1],y[2])
#define NV_CROSS(a,x,y)NV_D(a,=,NV_CROSS_X(x,y),NV_CROSS_Y(x,y),NV_CROSS_Z(x,y))
//a=x X y

DEFINE_EXECUTE_AT_END

#define DEFINE_EXECUTE_AT_END(name) EXTERN_C void name(void)

在稳态计算的每次迭代后启用。

在瞬态计算的每个时间步后启用。

Get_Domain

FLUENT_EXPORT Domain *Get_Domain(int id);

1指混合相的区域指针（未开启多相流时所有流体区域均为混合相）

当开启多相流时，可以为大于1的数。此时id为对应相的id

id 是相的id而非区域id。

Domain d = *Get_Domain(1);

很多UDF需要使用Domain *参数，但DEFINE_EXECUTE_AT_END不提供该参数。故需要自己生成一个。

并行编程

并行编程可以加速求解速度。但由于并行中的数据传递等问题，需要将程序并行化。

例如，求解全局最小，每个节点只知道自己所分配的区域的最小值。所有其他节点只知道节点0，而不知道其他节点。

并行编程相对串行编程，主要有两个步骤：

单节点操作
全局汇总

fluent19.0（印象中的，不一定准确）以后已经没有串行版本了，均为并行版本。

Host 和 Node

Host：解释来自 Cortex 的命令并将这些命令（和数据）传递给计算Node 0 以进行分发。
Node 0 ：接受来自Host的命令和数据，并分发给其他节点。同时也进行分布计算。全局汇总操作在Node 0进行。
Node 1-N：接受来自Node 0分发的数据，进行计算，计算完的数据再传回给Node 0。

有些操作需要由Host完成，而有些操作需要由Node 完成，需要将这些操作区分开

Host中没有网格的数据，所有网格相关的操作需要在Host之外操作。

例如求解面平均压强，需要求解总力和总面积，再相除。最后的相处操作若未排除Host，那么就会出现除以0的问题，进而出现 float point exception 错误。

/**********************************************************************/
/* Compiler Directives */
/**********************************************************************/
#if RP_HOST
/* only host process is involved */
#endif
#if RP_NODE
/* only compute nodes are involved */
#endif
/*********************************************************************/
/* Negated forms that are more commonly used */
/*********************************************************************/
#if !RP_HOST
/* only compute nodes are involved */
#endif
#if !RP_NODE
/* only host process is involved */
#endif

Host 和 Node之间的数据传递

host_to_node_type_num(var1,var2,...)

type:变量类型
num:变量数量
var1,va2,…:需要传递的变量

int domain_id_send_to_node = 1;
host_to_node_int_1(domain_id_send_to_node);
//意思就是说把一个名叫domain_id_send_to_node的int型变量送往节点

源码：

/*传递布尔数，最多七个*/
#define host_to_node_boolean_1(a)
#define host_to_node_boolean_2(a,b)
#define host_to_node_boolean_3(a,b,c)
#define host_to_node_boolean_4(a,b,c,d)
#define host_to_node_boolean_5(a,b,c,d,e)
#define host_to_node_boolean_6(a,b,c,d,e,f)
#define host_to_node_boolean_7(a,b,c,d,e,f,g)

/*传递整数数，最多七个*/
#define host_to_node_int_1(a)
#define host_to_node_int_2(a,b)
#define host_to_node_int_3(a,b,c)
#define host_to_node_int_4(a,b,c,d)
#define host_to_node_int_5(a,b,c,d,e)
#define host_to_node_int_6(a,b,c,d,e,f)
#define host_to_node_int_7(a,b,c,d,e,f,g)
#define host_to_node_int64_1(a)
#define host_to_node_int64_2(a,b)
#define host_to_node_long_1(a)
#define host_to_node_long_2(a,b)
#define host_to_node_long_3(a,b,c)
#define host_to_node_long_4(a,b,c,d)
#define host_to_node_long_5(a,b,c,d,e)
#define host_to_node_long_6(a,b,c,d,e,f)
#define host_to_node_long_7(a,b,c,d,e,f,g)
#define host_to_node_long_long_1(a)
#define host_to_node_long_long_2(a,b)
#define host_to_node_long_long_3(a,b,c)
#define host_to_node_long_long_4(a,b,c,d)
#define host_to_node_long_long_5(a,b,c,d,e)
#define host_to_node_long_long_6(a,b,c,d,e,f)
#define host_to_node_long_long_7(a,b,c,d,e,f,g)
/******************************
****传递浮点数，最多传9个变量*******
建议使用real，而不是double和float*/
#define host_to_node_real_1(a)
#define host_to_node_real_2(a,b)
#define host_to_node_real_3(a,b,c)
#define host_to_node_real_4(a,b,c,d)
#define host_to_node_real_5(a,b,c,d,e)
#define host_to_node_real_6(a,b,c,d,e,f)
#define host_to_node_real_7(a,b,c,d,e,f,g)
#define host_to_node_real_8(a,b,c,d,e,f,g,h)
#define host_to_node_real_9(a,b,c,d,e,f,g,h,i)

#define host_to_node_float_1(a)
#define host_to_node_float_2(a,b)
#define host_to_node_float_3(a,b,c)
#define host_to_node_float_4(a,b,c,d)
#define host_to_node_float_5(a,b,c,d,e)
#define host_to_node_float_6(a,b,c,d,e,f)
#define host_to_node_float_7(a,b,c,d,e,f,g)
#define host_to_node_float_8(a,b,c,d,e,f,g,h)
#define host_to_node_float_9(a,b,c,d,e,f,g,h,i)

#define host_to_node_double_1(a)
#define host_to_node_double_2(a,b)
#define host_to_node_double_3(a,b,c)
#define host_to_node_double_4(a,b,c,d)
#define host_to_node_double_5(a,b,c,d,e)
#define host_to_node_double_6(a,b,c,d,e,f)
#define host_to_node_double_7(a,b,c,d,e,f,g)
#define host_to_node_double_8(a,b,c,d,e,f,g,h)
#define host_to_node_double_9(a,b,c,d,e,f,g,h,i)
/**********************************************/
//传递枚举，本质上是一个整数
#define host_to_node_enum_1(a)
//传递文件路径，本质上是一个字符串
#define host_to_node_sync_file(f)

host_to_node_type(var_name,var_num)

type:数组变量的类型，字符串数组为string而非char
var_name:数组变量的名字
var_num:数组的长度

//EXAMPLE 1:
char my_name[]="satisfactions";
host_to_node_string(my_name,14);//注意字符串数组后面隐藏有一个'\0'

//EXAMPLE 2:
int domain_ids[2]={10,15};
host_to_node_int(domain_id,2);

源码：

#define host_to_node_real(a,b)
#define host_to_node_float(a,b)
#define host_to_node_double(a,b)

#define host_to_node_int(a,b)
#define host_to_node_long(a,b)
#define host_to_node_long_long(a,b)

#define host_to_node_boolean(a,b)

#define host_to_node_string(a,b)

同理，从节点向主机传递数据为

node_to_host_type_num(var1,var2,...)
node_to_host_type(var_name,var_num)

#define node_to_host_boolean_1(a)

#define node_to_host_double_1(a)
#define node_to_host_double_2(a,b)
#define node_to_host_double_3(a,b,c)
#define node_to_host_double_4(a,b,c,d)
#define node_to_host_double_5(a,b,c,d,e)
#define node_to_host_double_6(a,b,c,d,e,f)
#define node_to_host_double_7(a,b,c,d,e,f,g)

#define node_to_host_int_1(a)
#define node_to_host_int_2(a,b)
#define node_to_host_int_3(a,b,c)
#define node_to_host_int_4(a,b,c,d)
#define node_to_host_int_5(a,b,c,d,e)
#define node_to_host_int_6(a,b,c,d,e,f)
#define node_to_host_int_7(a,b,c,d,e,f,g)
/*源码里是这样，怀疑它有问题*/
#define host_to_node_int64_1(a)
#define host_to_node_int64_2(a,b)
/*******************/
#define node_to_host_long_1(a)
#define node_to_host_long_2(a,b)
#define node_to_host_long_3(a,b,c)
#define node_to_host_long_4(a,b,c,d)
#define node_to_host_long_5(a,b,c,d,e)
#define node_to_host_long_6(a,b,c,d,e,f)
#define node_to_host_long_7(a,b,c,d,e,f,g)

#define node_to_host_long_long_1(a)
#define node_to_host_long_long_2(a,b)
#define node_to_host_long_long_3(a,b,c)
#define node_to_host_long_long_4(a,b,c,d)
#define node_to_host_long_long_5(a,b,c,d,e)
#define node_to_host_long_long_6(a,b,c,d,e,f)
#define node_to_host_long_long_7(a,b,c,d,e,f,g)

#define node_to_host_real_1(a)
#define node_to_host_real_2(a,b)
#define node_to_host_real_3(a,b,c)
#define node_to_host_real_4(a,b,c,d)
#define node_to_host_real_5(a,b,c,d,e)
#define node_to_host_real_6(a,b,c,d,e,f)
#define node_to_host_real_7(a,b,c,d,e,f,g)

#define node_to_host_float_1(a)
#define node_to_host_float_2(a,b)
#define node_to_host_float_3(a,b,c)
#define node_to_host_float_4(a,b,c,d)
#define node_to_host_float_5(a,b,c,d,e)
#define node_to_host_float_6(a,b,c,d,e,f)
#define node_to_host_float_7(a,b,c,d,e,f,g)

#define node_to_host_real(a,b)
#define node_to_host_float(a,b)
#define node_to_host_double(a,b)
#define node_to_host_int(a,b)
#define node_to_host_long(a,b)
#define node_to_host_long_long(a,b)
#define node_to_host_boolean(a,b)
#define node_to_host_string(a,b)

注意，没有node_to_host_sync_file, node_to_host_enum_1，支持的最大变量数也有差别不一样。

并行循环

并行循环与串行循环不同，其涉及到两个步骤：

节点本地处理
全局汇总操作

节点循环

beging_c_loop_int(cell,thread)
{
    //do somthing
}end_c_loop_int(cell,thread)

beging_f_loop(face,thread)
{
    if(PRINCIPAL_FACE_P(face,thread))
    {
        //do somthing
    }
}end_f_loop(face,thread)

全局汇总

此类宏的名称由四部分组成

前缀：均为PRF_G
数据类型标志：操作的数据的类型
- I–int
- R–real
- L–logical
- B–boolean
操作标志：进行什么操作
- SUM–求和
- HIGH–求最大值
- LOW–求最小值
- AND–逻辑和运算
- OR–逻辑或运算
版本标志：此类宏有两个版本
- 尾缀加1，表示对单个简单变量进行操作，并可返回一个变量。此时宏的使用为 output=PRF_G[Type][Operation]1(x);
- 尾缀不加1，表示对数组进行操作,不返回变量。此时宏的使用为 ` PRF_G[Type]Operation`
- x:进行操作的量级最终的返回值（数组）
- N:数组的长度
- temp_storage:操作中需要使用的临时变量，需要和x类型长度相同

//EXAMPLE 1:
//假定现在已经在每个节点对x进行了求和
x=PRF_GRSUM1(x);
//表示对一个类型为real的变量x进行全局求和，求和之后的值再赋给x。

//EXAMPLE 2：
int N = 3;
real x[N]={max_temp,max_press,max_vel};//x的三个成员分别表示温度，压力，速度。
real temp[N];
//假定现在已经在每个节点对x的三个分量求得了最大值
PRF_GRHIGH(x,N,temp);

Lookup_Thread

FLUENT_EXPORT Thread *Lookup_Thread(Domain *, int id);

id : boundaty of cell zone id

Example. 1 求某个区域的面积

/*串行版*/
real area[3];
real total_area = 0.0;
begin_f_loop(face, thread)
{
    F_AREA(area, face, thread);
    total_area += NV_MAG(area);
}end_f_loop(face, thread)

/*并行版*/
real total_area = 0.0;
#if !RP_HOST
    real area[3];
#endif /* !RP_HOST */
#if !RP_HOST
    begin_f_loop(face, thread)
    {
       if (PRINCIPAL_FACE_P(face, thread))
    	{
        	F_AREA(area, face, thread);
        	total_area += NV_MAG(area);
    	}
    }end_f_loop(face, thread)
#if RP_NODE /* Perform node synchronized actions here */
    total_area = PRF_GRSUM1(total_area);
#endif /* RP_NODE */
#endif /* !RP_HOST */

Example. 2 求某个区域的体积

/*串行版*/
real total_vol = 0.0;
begin_c_loop(cell, thread)
{
    total_vol += C_VOLUME(cell,thread);
}end_c_loop(cell, thread)

/*并行版*/
real total_vol = 0.0;
#if !RP_HOST
    begin_c_loop_int(cell, thread)
	{
    	total_vol += C_VOLUME(cell,thread);
	}end_c_loop_int(cell, thread)
#if RP_NODE /* Perform node synchronized actions here */
    total_vol = PRF_GRSUM1(total_vol);
#endif /* RP_NODE */
#endif /* !RP_HOST */

Get_Report_Definition_Values

FLUENT_EXPORT int Get_Report_Definition_Values(const char *name, int timeStepOrIteration, int *nrOfvalues, real *values, int *ids, int *index);

[input] const char* name : report definition的名字
[input] int type : 获取每次迭代数据（0）还是每次时间步的数据（1）。瞬态计算只能用1.
[output] int* nrOfvalues ：该report definition的变量数
[output] real* values : 该report definition的变量
[output] int* ids : 跟该report definition相关的surface/zone的ID。（如果 per-zone 或 per-surface 选项关闭，且surfaces/zones数量大于1，将返回-1
[output] int* index : 该report definition的索引（第几次迭代/时间步）
[return] 0-获取成功/1-该report definition不存在，获取失败

一般来说，需要调用两次。第一次，获取变量数，并按此分配内存空间。第二次再获取相应的变量。

int nrOfvalues=0;
real *values;
int *ids;
int index;
int counter;
char[] defName = "report-def-0";
/*第一次调用*/
int rv = Get_Report_Definition_Values(defName, 1, &nrOfvalues, NULL,
                                          NULL, NULL);
if (rv == 0 && nrOfvalues) {
    Message("Report definition evaluated at iteration has %d values\n",
            nrOfvalues);
    /*为 values 和 ids 分配内存.*/
    values = (real *)malloc(sizeof(real) * nrOfvalues);
    ids = (int *)malloc(sizeof(int) * nrOfvalues);
    /*第二次调用，获取 values 和 ids.*/
    rv = Get_Report_Definition_Values(defName, 1, NULL, values, ids,
                                      &index);
    /***********/
    /***操作 do something*****/
    /*释放内存*/
    free(values);
    free(ids);
} else {
        /*不存在或还未求值，调用失败.*/
    if (rv == 1) {
        Message("report definition: %s does not exist\n", defName);
    } else if (nrOfvalues == 0) {
        Message("report definition: %s not evaluated at iteration level\n",
                    defName);
    }
    return;
}

DEFINE_SDOF_PROPERTIES

#define DEFINE_SDOF_PROPERTIES(name, properties, dt, time, dtime) \
  EXTERN_C void name(real *properties, Dynamic_Thread *dt, real time, real dtime)

Type	Parameter	Notes
symbol	name	UDF名字
real*	properties	指向六自由度属性数组的指针
Dynamic_Thread*	dt	指向动网格相关属性结构体的指针
real	time	当前时间
real	dtime	时间步
void	return	无返回值

六自由度求解器

利用物体受到的力和力矩计算物体重心的平动和转动。

\[\dot{\vec{v}}_G=\frac{1}{m} \sum \left(\vec{f}_{G,e}+\vec{G}\right )\] \[\dot{\vec{\omega}}_B=L^{-1}\left(\sum \vec{M}_B-\vec{\omega}_B \times L \vec{\omega}_B\right)\] \[\vec{M}_B=R \vec{M}_G\] \[R= \left[\begin{array}{ccc} C_\theta C_\psi & C_\theta S_\psi & -S_\theta \\ S_\phi S_\theta C_\psi-C_\phi S_\psi & S_\phi S_\theta S_\psi+C_\phi C_\psi & S_\phi C_\theta \\ C_\phi S_\theta C_\psi+S_\phi S_\psi & C_\phi S_\theta S_\psi-S_\phi C_\psi & C_\phi C_\theta \end{array}\right]\]

一般来说$C_\chi=\cos (\chi)$ ， $S_\chi=\sin (\chi)$ ; $\phi$, $\theta$,$\psi$为欧拉角。

使用

六自由度对象

/* ,/mesh/six_dof.h */

typedef struct six_dof_object
{

  char name[132];
  real mass;

  real Ixx;
  real Iyy;
  real Izz;
  real Ixy;
  real Iyz;
  real Ixz;
  /*************One DOF Parameters*************/
  cxboolean onedof_t_p;    	//是否开启单自由度平动
  cxboolean onedof_r_p;    	//是否开启单自由度转动
  cxboolean onedof_cons_p; 	//是否开启位置约束

  real dir[3];             	//单自由度平动方向
  real rot_loc[3];			//单自由度旋转中心

  real loc;
  real loc_n;
  real init;
  real min;
  real max;

  real preload;
  real spring;
  /******************One DOF******************/
  struct six_dof_object *next;
} Six_DOF_Object;

六自由度属性

typedef enum
{
  //质量
  SDOF_MASS = 0,
  //转动惯量
  SDOF_IXX,
  SDOF_IYY,
  SDOF_IZZ,
  SDOF_IXY,
  SDOF_IXZ,
  SDOF_IYZ,
  //六自由度参考系：FALSE-全局坐标系；TRUE-局部坐标系
  SDOF_LOAD_LOCAL,         /* boolean */
      //外力
  SDOF_LOAD_F_X,
  SDOF_LOAD_F_Y,
  SDOF_LOAD_F_Z,
    //外力矩
  SDOF_LOAD_M_X,
  SDOF_LOAD_M_Y,
  SDOF_LOAD_M_Z,
    //TURE-使用自定义变换矩阵；FALSE-不使用
  SDOF_CUSTOM_TRANS,       /* boolean */
      //变换矩阵
  SDOF_CTRANS_11,
  SDOF_CTRANS_12,
  SDOF_CTRANS_13,
  SDOF_CTRANS_21,
  SDOF_CTRANS_22,
  SDOF_CTRANS_23,
  SDOF_CTRANS_31,
  SDOF_CTRANS_32,
  SDOF_CTRANS_33,
    //变换矩阵2
  SDOF_DTRANS_11,
  SDOF_DTRANS_12,
  SDOF_DTRANS_13,
  SDOF_DTRANS_21,
  SDOF_DTRANS_22,
  SDOF_DTRANS_23,
  SDOF_DTRANS_31,
  SDOF_DTRANS_32,
  SDOF_DTRANS_33,
    //平动自由度
  SDOF_ZERO_TRANS_X,       /* all zero switches are boolean */
  SDOF_ZERO_TRANS_Y,
  SDOF_ZERO_TRANS_Z,
    //旋转自由度
  SDOF_ZERO_ROT_X,
  SDOF_ZERO_ROT_Y,
  SDOF_ZERO_ROT_Z,
    //半模型的对称面法向量
  SDOF_SYMMETRY_X,
  SDOF_SYMMETRY_Y,
  SDOF_SYMMETRY_Z,
  SDOF_SIZE_PROP           /* has to be the last entry */
} SDOF_Prop;

六自由度属性设置

可以通过类似properties[SDOF_MASS]的方法设置六自由度属性

或者通过以下宏设置六自由度属性：

#define SDOFP_MASS(s)         (s[SDOF_MASS])
#define SDOFP_MOI(s)          (s+SDOF_IXX)          /* moments of inertia */
#define SDOFP_POI(s)          (s+SDOF_IXY)          /* products of inertia */
#define SDOFP_LOAD_LOCAL(s)   (s[SDOF_LOAD_LOCAL])  /* load forces/moments */
#define SDOFP_LOAD_F(s)       (s+SDOF_LOAD_F_X)
#define SDOFP_LOAD_M(s)       (s+SDOF_LOAD_M_X)
#define SDOFP_CUSTOM_TRANS(s) (s[SDOF_CUSTOM_TRANS])/* costum transformations */
#define SDOF_CTRANS           SDOF_CTRANS_11
#define SDOF_DTRANS           SDOF_DTRANS_11
#define SDOFP_CTRANS(s)       (s+SDOF_CTRANS)
#define SDOFP_DTRANS(s)       (s+SDOF_DTRANS)
#define SDOFP_ZERO_TRANS(s)   (s+SDOF_ZERO_TRANS_X)
#define SDOFP_ZERO_ROT(s)     (s+SDOF_ZERO_ROT_X)
#define SDOFP_SYMMETRY(s)     (s+SDOF_SYMMETRY_X)   /* symmetry plane normal */

获取六自由度对象

sdof_obj = Get_SDOF_Object(DT_PU_NAME(dt));

#define DT_PU_NAME(s)          ((s)->profile_udf_name)   //通过动网格指针获取六自由度对象的名字。
FLUENT_EXPORT Six_DOF_Object *Get_SDOF_Object(char[132]);//通过名字获取六自由度对象。

设置六自由度对象的属性

可以通过以下宏设置六自由度对象的属性（不推荐直接设置对象属性）

#define SDOFO_NAME(sobj)      ((sobj)->name)
#define SDOFO_MASS(sobj)      ((sobj)->mass)
#define SDOFO_IXX(sobj)       ((sobj)->Ixx)
#define SDOFO_IYY(sobj)       ((sobj)->Iyy)
#define SDOFO_IZZ(sobj)       ((sobj)->Izz)
#define SDOFO_IXY(sobj)       ((sobj)->Ixy)
#define SDOFO_IYZ(sobj)       ((sobj)->Iyz)
#define SDOFO_IXZ(sobj)       ((sobj)->Ixz)
#define SDOFO_1DOF_T_P(sobj)  ((sobj)->onedof_t_p)
#define SDOFO_1DOF_R_P(sobj)  ((sobj)->onedof_r_p)
#define SDOFO_CONS_P(sobj)    ((sobj)->onedof_cons_p)
#define SDOFO_DIR(sobj)       ((sobj)->dir)
#define SDOFO_CENTER_ROT(sobj)((sobj)->rot_loc)
#define SDOFO_INIT(sobj)      ((sobj)->init)
#define SDOFO_LOC(sobj)       ((sobj)->loc)
#define SDOFO_LOC_N(sobj)     ((sobj)->loc_n)
#define SDOFO_MIN(sobj)       ((sobj)->min)
#define SDOFO_MAX(sobj)       ((sobj)->max)
#define SDOFO_F(sobj)         ((sobj)->preload)
#define SDOFO_K(sobj)         ((sobj)->spring)
#define SDOFO_NEXT(sobj)      ((sobj)->next)

样例

Example 1. 定义六自由度属性

#include "udf.h"
DEFINE_SDOF_PROPERTIES(sdof_prop, prop,dt,time,dtime)
{
    prop[SDOF_MASS] = 800.0;
    prop[SDOF_IXX] = 200.0;
    prop[SDOF_IZZ] = 100.0;
}

Example 2. 定义半模型的属性

#include "udf.h"
DEFINE_SDOF_PROPERTIES(sdof_prop, prop,dt,time,dtime)
{
    prop[SDOF_MASS] = 800.0;
    prop[SDOF_IXX] = 200.0;
    prop[SDOF_IZZ] = 100.0;
    prop[SDOF_SYMMETRY_X] = 0;
    prop[SDOF_SYMMETRY_Y] = 0;
    prop[SDOF_SYMMETRY_Z] = 1;
}

Example 3. 限制转动

#include "udf.h"
DEFINE_SDOF_PROPERTIES(sdof_prop, prop,dt,time,dtime)
{
    prop[SDOF_MASS] = 800.0;
    prop[SDOF_IXX] = 200.0;
    prop[SDOF_IZZ] = 100.0;
    prop[SDOF_ZERO_ROT_X] = TRUE;
    prop[SDOF_ZERO_ROT_Y] = TRUE;
    prop[SDOF_ZERO_ROT_Z] = FALSE;
}

Example 4. 限制平动

#include "udf.h"
DEFINE_SDOF_PROPERTIES(sdof_prop, prop,dt,time,dtime)
{
    prop[SDOF_MASS] = 800.0;
    prop[SDOF_IXX] = 200.0;
    prop[SDOF_IZZ] = 100.0;
    prop[SDOF_ZERO_TRANS_X] = TRUE;
    prop[SDOF_ZERO_TRANS_Y] = TRUE;
    prop[SDOF_ZERO_TRANS_Z] = FALSE;
}

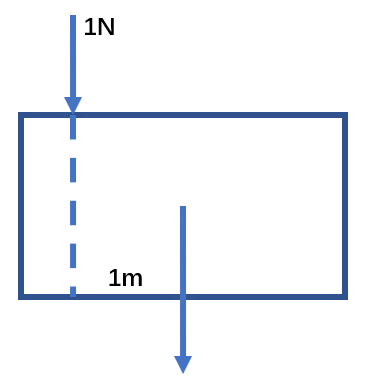

Example 5. 外力作用

初始状态：

\[F_z=1N;\] \[M_z=1N\cdot m\]

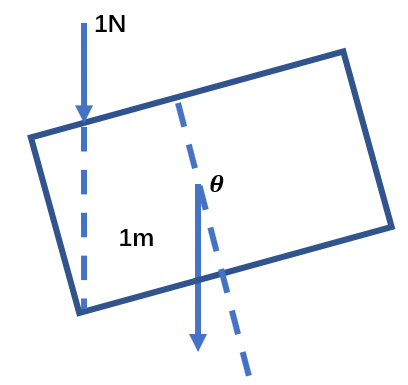

\[F_z=1N;\] \[M_z=F_z\frac{\cos{(\theta + 45^o)}}{\cos{45^o}}\]

#include "udf.h"

#define F_Z 1
#define DIST 1

DEFINE_SDOF_PROPERTIES(external_force,prop,dt,time,dtime)
{
    prop[SDOF_MASS] = 800.0;
    prop[SDOF_IXX] = 200.0;
    prop[SDOF_IYY] = 150.0;
    prop[SDOF_IZZ] = 100.0;
    real theta = DT_THETA(dt)[2];
    prop[SDOF_LOAD_F_Z] = F_Z;
    porp[SDOF_LOAD_M_Z] = F_Z/0.70710678*cos(theta+1.570796327);
}

Example 6. 单自由度平动

#include "udf.h"

DEFINE_SDOF_PROPERTIES(one_dof_trans,prop,dt,time,dtime)
{
    prop[SDOF_MASS] = 800.0;
    prop[SDOF_IXX] = 200.0;
    prop[SDOF_IYY] = 150.0;
    prop[SDOF_IZZ] = 100.0;

    sdof_obj=Get_SDOF_Object(DT_PU_NAME(dt));
    if(NULLP(sdof_obj))
    {
        SDOFO_1DOF_T_P(sdof_obj)=TRUE;		//开启单自由度平动
        SDOFO_1DOF_R_P(sdof_obj)=FALSE;		//关闭单自由度转动
        SDOFO_DIR(sdof_obj)[0]=0.0;			//单自由度平动方向矢量
        SDOFO_DIR(sdof_obj)[1]=0.0;
        SDOFO_DIR(sdof_obj)[2]=1.0;
        SDOFO_CONS_P(sdof_obj)=TRUE;		//位置限制

        SDOFO_LOC(sdof_obj)=0.0;			//初始位置
        SDOFO_MIN(sdof_obj)=-0.5;			//最小限制
        SDOFO_MAX(sdof_obj)=0.5;			//最大限制
        SDOFO_F(sdof_onj)=0.0;				//预作用力
        SDOFO_K(sdof_obj)=0.0;				//弹簧常数

        SDOFO_INIT(sdof_obj)=SDOF_LOC(sdof_obj);
        SDOFO_LOC_N(sdof_obj)=SDOF_LOC(sdof_obj);
    }
}

Example 6. 单自由度转动

#include "udf.h"

DEFINE_SDOF_PROPERTIES(one_dof_rot,prop,dt,time,dtime)
{
    prop[SDOF_MASS] = 800.0;
    prop[SDOF_IXX] = 200.0;
    prop[SDOF_IYY] = 150.0;
    prop[SDOF_IZZ] = 100.0;

    sdof_obj=Get_SDOF_Object(DT_PU_NAME(dt));
    if(NULLP(sdof_obj))
    {
        SDOFO_1DOF_T_P(sdof_obj)=TRUE;		//关闭单自由度平动
        SDOFO_1DOF_R_P(sdof_obj)=FALSE;		//开启单自由度转动
        SDOFO_DIR(sdof_obj)[0]=0.0;			//转动中心坐标
        SDOFO_DIR(sdof_obj)[1]=0.0;
        SDOFO_DIR(sdof_obj)[2]=1.0;
        SDOFO_CONS_P(sdof_obj)=TRUE;		//位置限制

        SDOFO_LOC(sdof_obj)=0.0;			//初始位置
        SDOFO_MIN(sdof_obj)=-0.5;			//最小限制
        SDOFO_MAX(sdof_obj)=0.5;			//最大限制
        SDOFO_F(sdof_onj)=0.0;				//预作用力矩
        SDOFO_K(sdof_obj)=0.0;				//扭力弹簧常数

        SDOFO_INIT(sdof_obj)=SDOF_LOC(sdof_obj);
        SDOFO_LOC_N(sdof_obj)=SDOF_LOC(sdof_obj);
    }
}

Example 7. 双向流体-刚体运动耦合

/*实现简单的流体与刚体运动的双向耦合*/
/*需要开启Implict Update*/
/*六自由度求解器一定会考虑重力，不需要手动添加重力的影响*/
/*手动添加的均为外力*/
#include "udf.h"

/*****define some constants*****/
#define MASS 1
/********************/

static real total_force_z;

DEFINE_SDOF_PROPERTIES(one_dof_trans,prop,dt,time,dtime)
{
    prop[SDOF_MASS] = MASS;
    prop[SFOF_LOAD_F_Z] = total_froce_z;
    sdof_obj=Get_SDOF_Object(DT_PU_NAME(dt));
    if(NULLP(sdof_obj))
    {
        SDOFO_1DOF_T_P(sdof_obj)=TRUE;		//开启单自由度平动
        SDOFO_1DOF_R_P(sdof_obj)=FALSE;		//关闭单自由度转动
        SDOFO_DIR(sdof_obj)[0]=0.0;			//单自由度平动方向矢量
        SDOFO_DIR(sdof_obj)[1]=0.0;
        SDOFO_DIR(sdof_obj)[2]=1.0;
        SDOFO_CONS_P(sdof_obj)=TRUE;		//位置限制

        SDOFO_LOC(sdof_obj)=0.0;			//初始位置
        SDOFO_MIN(sdof_obj)=-0.5;			//最小限制
        SDOFO_MAX(sdof_obj)=0.5;			//最大限制
        SDOFO_F(sdof_onj)=0.0;				//预作用力
        SDOFO_K(sdof_obj)=0.0;				//弹簧常数

        SDOFO_INIT(sdof_obj)=SDOF_LOC(sdof_obj);
        SDOFO_LOC_N(sdof_obj)=SDOF_LOC(sdof_obj);
    }
}
/*利用UDF获取作用力*/
DEFINE_EXECUTE_AT_END(compute_vel) {
    Domain *domain=Get_Domain(1);
    int domain_id_send_to_node;
    real force_temp = 0;
    real total_force_z = 0;
    real dv=0;
/*************并行版循环**************/
//此处定义仅在计算节点中使用的变量
#if !RP_HOST
    Thread *thread;
    face_t face;
    real area[ND_ND];
#endif
//将需要进行循环的区域ID分发到节点上
    domain_id_send_to_node = 10;
    /*主机与节点的数据交换*/
    host_to_node_int_1(domain_id_send_to_node);
#if !RP_HOST
    thread = Lookup_Thread(domain, domain_id_send_to_node);
    begin_f_loop(face, thread)
        /*边界可能进行两次计算，利用PRINCIPAL_FACE_P(face, thread)避免*/
    if (PRINCIPAL_FACE_P(face, thread)) {
        F_AREA(area, face, thread);
        force_temp += area[2] * F_P(face, thread);
    }
    end_f_loop(face, thread)
#if RP_NODE /* Perform node synchronized actions here */

        force_temp = PRF_GRSUM1(force_temp);
#endif /* RP_NODE */
#endif /* !RP_HOST */
/**********************************/
    total_force_z += force_temp;
}

/*利用Report definition获取作用力*/
DEFINE_ADJUST(compute_vel_from_definition)
{
    /*使用Get_Report_Definition_Values需要的变量*/
    int nrOfvalues = 0;
    real *values;
    int *ids;
    int index;
    int counter;
    /*计算当前速度需要的变量*/
    real dv;
    real total_force_z;
    /*********获取报告定义值************/
    //第一次调用，获取values的个数
    int rv = Get_Report_Definition_Values("report-def-0", 1, &nrOfvalues, NULL,
                                          NULL, NULL);
    if (rv == 0 && nrOfvalues) {
        Message("Report definition evaluated at iteration has %d values\n",
                nrOfvalues);
    /*为 values 和 ids 分配内存.*/
    values = (real *)malloc(sizeof(real) * nrOfvalues);
    ids = (int *)malloc(sizeof(int) * nrOfvalues);
    /*第二次调用，获取 values 和 ids.*/
    rv = Get_Report_Definition_Values("report-def-0", 1, NULL, values, ids,
                                      &index);
    /*calculate current velocity*/
    total_force_z=values[0];
    /*释放内存*/
    free(values);
    free(ids);
    } else {
        /*不存在或还未求值，调用失败.*/
        if (rv == 1) {
            Message("report definition: %s does not exist\n", "report-def-0");
        } else if (nrOfvalues == 0) {
            Message("report definition: %s not evaluated at iteration level\n",
                    "report-def-0");
        }
        return;
    }
}

补充知识

动网格工具宏DT_

/*dynamesh_tools.h*/
typedef struct dynamic_thread_rigid_body_state
{
  real cg[3];                              /* center of gravity
                                              position wrt global */
  quaternion q;                            /* orientation quaternion */
  real theta[3];                           /* orientation angles wrt global,
                                              Euler angles for 6-dof */
  real v_cg[3];                            /* instantaneous cg velocity
                                              vector */
  real omega_cg[3];                        /* instantaneous cg angular
                                              velocity vector */
  real acc_cg[3];                          /* instantaneous
                cg acceleration vector */
  real alpha_cg[3];                        /* instantaneous cg angular
                acceleration vector */
  real dir[3];                             /* direction of motion */

  real W[3];                               /* Convective angular velocity */
  real A[3];                               /* Convective angular acceleration */
  real torque[3];                          /* Torque */
} Dynamic_Thread_Rigid_Body_State;

/*dynamesh_tools.h*/
#define DT_THREAD_NEXT(s)      ((s)->next)
#define DT_THREAD(s)           ((s)->thread)

#define DT_RB_CURR_STATE(s)    ((s)->current_state)
#define DT_CG(s)               ((s)->current_state.cg)
//当前重心坐标
#define DT_Q(s)                ((s)->current_state.q)
//当前刚体的四元数
#define DT_VEL_CG(s)           ((s)->current_state.v_cg)
//瞬时重心速度矢量
#define DT_OMEGA_CG(s)         ((s)->current_state.omega_cg)
//瞬时重心角速度矢量
#define DT_ACC_CG(s)           ((s)->current_state.acc_cg)
//瞬时加速度矢量
#define DT_ALPHA_CG(s)         ((s)->current_state.alpha_cg)
//瞬时角加速度矢量
#define DT_THETA(s)            ((s)->current_state.theta)
//随体坐标系欧拉角
#define DT_DIR(s)              ((s)->current_state.dir)
//运动方向矢量
#define DT_W(s)                ((s)->current_state.W)
//Convective angular velocity Omega=R^{-1}*dR/dt
//R:旋转矩阵，随体坐标和全局坐标的转换矩阵
#define DT_A(s)                ((s)->current_state.A)
//对流角加速度
#define DT_TORQUE(s)           ((s)->current_state.torque)
//当前扭矩

/*初始状态宏，和上面一样，但是是初始状态*/
#define DT_RB_INIT_STATE(s)    ((s)->init_state)
#define DT_RB_TMP_STATE(s)     ((s)->tmp_state)

#define DT_INIT_CG(s)          ((s)->init_state.cg)
#define DT_INIT_Q(s)           ((s)->init_state.q)
#define DT_INIT_THETA(s)       ((s)->init_state.theta)
#define DT_INIT_VEL_CG(s)      ((s)->init_state.v_cg)
#define DT_INIT_OMEGA_CG(s)    ((s)->init_state.omega_cg)
#define DT_INIT_ACC_CG(s)      ((s)->init_state.acc_cg)
#define DT_INIT_ALPHA_CG(s)    ((s)->init_state.alpha_cg)
#define DT_INIT_DIR(s)         ((s)->init_state.dir)
/*初始状态宏，和上面一样，但是是初始状态*/


#define DT_DIR_REF(s)          ((s)->dir_ref)
//运动参考方向
#define DT_DIR_PREV(s)         ((s)->dir_prev)
//之前运动的参考方向
#define DT_AXIS(s)             ((s)->axis)
//运动的随体坐标轴
#define DT_GEOM_ORIGIN(s)      ((s)->geom_origin)
#define DT_GEOM_AXIS(s)        ((s)->geom_axis)
#define DT_GEOM_RADIUS(s)      ((s)->geom_radius)
#define DT_FEATURE_P(s)        ((s)->geom_feature_p)
#define DT_FEATURE_ANGLE(s)    ((s)->geom_feature_angle)
#define DT_UPDATE_FNC(s)       ((s)->update)
#define DT_LEN(s)              ((s)->len)
#define DT_MIN_LSCALE(s)       (DT_REMESH_GLOBALS_P(s)?         \
                                remesh_min_lscale:(s)->len[0])
#define DT_MAX_LSCALE(s)       (DT_REMESH_GLOBALS_P(s)?        \
                                remesh_max_lscale:(s)->len[1])
#define DT_MAX_SKEW(s)         (DT_REMESH_GLOBALS_P(s)?                \
                                (CELL_THREAD_P(DT_THREAD(s))?           \
                                 remesh_max_cell_skew:remesh_max_face_skew): \
                                (s)->len[2])
#define DT_REFO(s)             ((s)->refo)
#define DT_PU_NAME(s)          ((s)->profile_udf_name)
#define DT_VLIST(s)            ((s)->lnodes)
#define DT_TYPE(s)             ((s)->type)
#define DT_UDF_TYPE(s)         ((s)->udf_type)
#define DT_HEIGHT(s)           ((s)->h)
#define DT_SLIDE_P(s)          ((s)->sliding)
#define DT_SLIDE_METHOD(s)     ((s)->sliding_method)
#define DT_SLIDE_ELEMENTS(s)   ((s)->sliding_elements)
#define DT_REMESH_P(s)         ((s)->remesh)
#define DT_REMESH_METHOD(s)    ((s)->remeshing_method)
#define DT_REMESH_GLOBALS_P(s) ((s)->remesh_globals_p)
#define DT_LAYER_P(s)          ((s)->layering)
#define DT_BL_DEFORM_P(s)      ((s)->boundary_layer_deform)
#define DT_UDF_DEFORM_P(s)     ((s)->user_defined_deform)
#define DT_BC_EXCLUDE_MOTION_P(s) ((s)->bc_exclude_motion)
#define DT_COUNTER(s)          ((s)->face_remesh_count)
#define DT_LOOPS(s)            ((s)->loops)
#define DT_NLOOPS(s)           ((s)->nloops)
#define DT_LAYER(s)            ((s)->layer)
#define DT_LAY_FAC(s)          ((s)->layer_factor)
#define DT_RACTION(s)          ((s)->face_remesh_action)
#define DT_GEOM_NAME(s)        ((s)->geometry_name)
#define DT_REMESH_SEP(s)       ((s)->separate_region)
#define DT_SDOF_P(s)           ((s)->sdof_p)
#define DT_PERDISP_P(s)        ((s)->perdisp_p)
#define DT_SDOF_CONT_P(s)      ((s)->sdof_contribute_p)
#define DT_HIDEAL_UDF(s)       ((s)->h_udf_name)
#define DT_CONTACT_UDF(s)      ((s)->contact_udf_name)
#define DT_UPDATE_STATE(s)     ((s)->update_state)
#define DT_RTMP1(s)            ((s)->tmp_r1)
#define DT_RTMP2(s)            ((s)->tmp_r2)
#define DT_ITMP1(s)            ((s)->tmp_i1)
#define DT_GOCART(s)           ((s)->gocart_param)
#define DT_GOCART_MAX(s)       ((s)->gocart_param[0])
#define DT_GOCART_RATE(s)      ((s)->gocart_param[1])
#define DT_GOCART_QUALITY(s)   ((s)->gocart_param[2])
#define DT_GOCART_RATIO(s)     ((s)->gocart_param[3])
#define DT_GOCART_INTERVAL(s)  ((s)->gocart_param[4])
#define DT_GOCART_PRISMS_P(s)  ((s)->gocart_prisms_p)
#define DT_GOCART_PRISM_TYPE(s) ((s)->gocart_prism_param.offset_method)
#define DT_GOCART_PRISM_H(s)   ((s)->gocart_prism_param.h)
#define DT_GOCART_PRISM_AR(s)  ((s)->gocart_prism_param.ar)
#define DT_GOCART_PRISM_NLAYER(s) ((s)->gocart_prism_param.nlayer)
#define DT_GOCART_PRISM_RATE(s) ((s)->gocart_prism_param.growth_rate)
#define DT_SOP_SWITCH(s)       ((s)->sop_comp)
#define DT_SOP_METHOD_NAME(s)  ((s)->sop_type_name)
#define DT_SOP_METHOD(s)       ((s)->sop_type)
#define DT_SOP_SCALE(s)        ((s)->sop_scale)
#define DT_NESTED_P(s)         ((s)->nested_p)
#define DT_NEST_THREAD(s)      ((s)->nest_thread)
#define DT_NEST_LOC_ROT_P(s)   ((s)->nested_local_rot_p)
#define DT_NEST_LOC_TRAN_P(s)  ((s)->nested_local_tran_p)

DEFINE_DYNAMIC_ZONE_PROPERTY

#define DEFINE_DYNAMIC_ZONE_PROPERTY(name, dt, lh)  \
  EXTERN_C void name(Dynamic_Thread *dt, real *lh)

Type	Parameter	Notes
symbol	name	UDF名字
Dynamic_Thread*	dt	指向动网格相关属性结构体的指针
real *	lh	指向网格层高的指针或旋转中心数组的指针。

DEFINE_CONTACT

定义检测到发生接触之后的操作。

#define DEFINE_CONTACT(name, dt, contacts) \
  EXTERN_C void name(Dynamic_Thread *dt, Objp *contacts)

Type	Parameter	Notes
symbol	name	UDF名字
Dynamic_Thread*	dt	指向动网格相关属性结构体的指针
Objp *	contacts	指向接触检测事件中涉及的单元的链表的指针。以 NULL 结尾

补充知识

窄缝的控制

窄缝的控制主要有以下四种方法：

gap model
contact detection
dynamic mesh events
手动控制

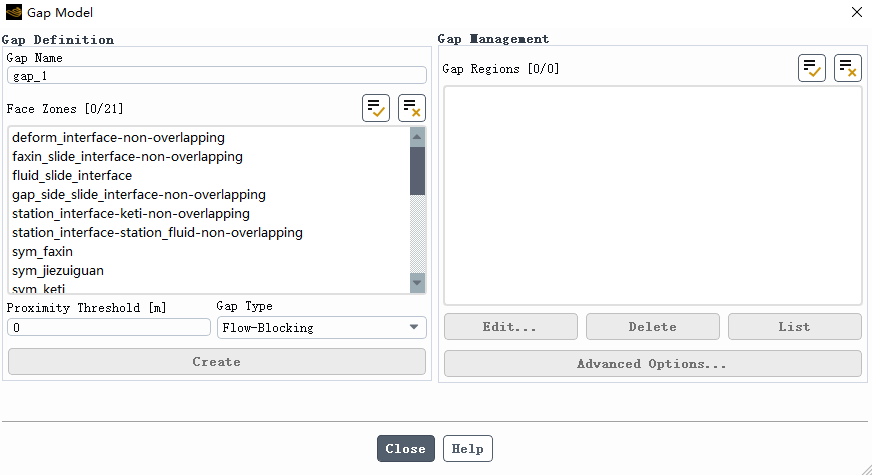

Gap Model

Flow-Blocking

判定为Gap的地方的流动会完全禁止。

Flow-Modeling

\[\mathrm{Re}_{\mathrm{gap}}=\frac{\rho_{\mathrm{avg}} u_{\mathrm{avg}} L}{\mu_{\mathrm{avg}}}\]

通过设置的雷诺数控制gap区域的流动

Limitations

不能在和以下设置同时使用：

density-based solver
axisymmetric swirl
Eulerian multiphase model
ablation model
Eulerian wall film model
Lagrangian wall film model
solidification/melting model
electric potential model
Lithium-ion battery model
acoustics models
structural model
discrete phase model (DPM)
radiation models
species models (with the exception of species transport for mixing but not reacting)
pollutant formation models
reactor network model
decoupled detailed chemistry pollutant model
multiphase flow with species transport
the following turbulence models / options: Reynolds stress models (RSM), Scale-Adaptive Simulation (SAS) model, Detached eddy simulation (DES) model, Large Eddy Simulation (LES) model, Scale-Resolving Simulation Options (SAS, DES, or SBES/SDES)
Green-Gauss Node Based gradient method (for flow-blocking type only)
QUICK or MUSCL discretization schemes (for flow-blocking type only)
Non-Iterative Time Advancement (NITA) scheme
coupled walls are not allowed to be selected for a gap region
the gap model cannot be used in a case that also has the Flow Control option enabled in the Contact Detection
the porous zone option cannot be enabled in cell zones where gaps are located

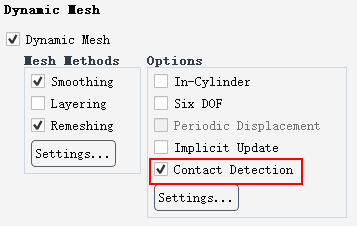

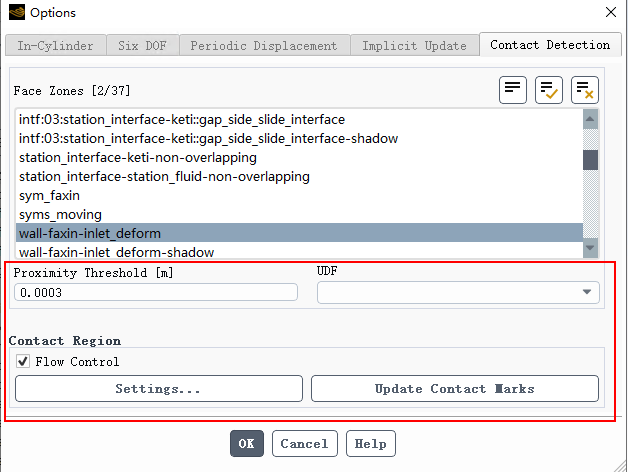

Contact Detection

Contact Marks

将标记区域的边界设置为零质量流量条件

Contact Zones

将标记区域单独划分出来，设置为多孔介质，通过设置阻力系数控制内部流动。

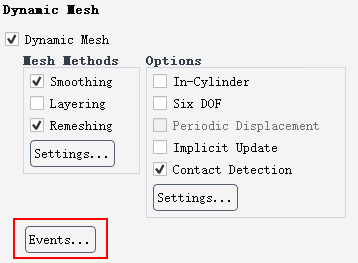

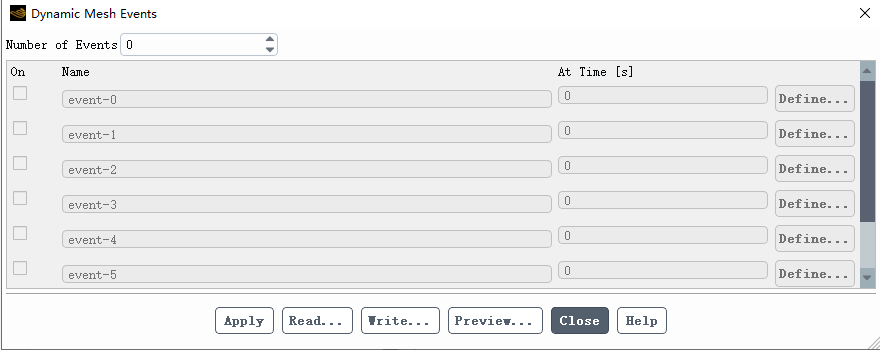

Dynamic Mesh Events

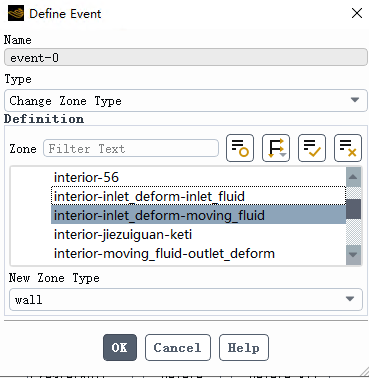

在窄缝处手动设置一个边界。初始为wall，阻止流动。在指定时间（此时窄缝已变得足够宽），将该边界的类型由wall修改为interior。

手动控制

手动设置wall边界

不使用Dynamic mesh events，而是按照其思路手动设置壁面，手动修改壁面类型。

手动设置多孔介质区域

按照 Contact Zones的思路，将某区域设置为多孔介质区域，在指定时间（此时窄缝已变得足够宽），去除多孔介质设置。

小结

方法	是否完全阻止流动	是否适用于周期运动
Gap Model Flow-Blocking	√	√
Gap Model Flow-Modeling	×	√
Contact Detection Contact Marks	√	√
Contact Detection Contact Zones	×	√
Dynamic Mesh Events	√	x
手动边界	√	√
手动多孔介质	×	√

周期运动：窄缝变宽后还会变窄

单向运动：窄缝变宽后不会变窄

能使用 Gap Model 就使用 Gap Model。
在不能使用 Gap Model 时：
- 对于单向运动，优先选择手动多孔介质。
- 对于周期运动，优先选择Contact Detection Contact Zones。
- 对于System Coupling，使用Contact Detection。

本文由 joe_zhouman 创作，采用知识共享署名4.0 国际许可协议进行许可
本站文章除注明转载/出处外，均为本站原创或翻译，转载前请务必署名
最后编辑时间为:2024-08-23 16:37:48

fluent动网格UDF

fluent动网格UDF

动网格相关宏

DEFINE_CG_MOTION

使用

样例

Example.1 刚体平动

Example.2 刚体转动

Example.3 随时间变化的刚体运动

Example.4 实现单向流体-刚体运动耦合

补充知识

向量和维度操作

ND_ 分量操作宏

NV_ 向量操作宏

DEFINE_EXECUTE_AT_END

Get_Domain

并行编程

Host 和 Node

Host 和 Node之间的数据传递

并行循环

节点循环

全局汇总

Lookup_Thread

Example. 1 求某个区域的面积

Example. 2 求某个区域的体积

Get_Report_Definition_Values

DEFINE_SDOF_PROPERTIES

六自由度求解器

使用

六自由度对象

六自由度属性

六自由度属性设置

获取六自由度对象

设置六自由度对象的属性

样例

Example 1. 定义六自由度属性

Example 2. 定义半模型的属性

Example 3. 限制转动

Example 4. 限制平动

Example 5. 外力作用

Example 6. 单自由度平动

Example 6. 单自由度转动

Example 7. 双向流体-刚体运动耦合

补充知识

动网格工具宏DT_

DEFINE_DYNAMIC_ZONE_PROPERTY

DEFINE_CONTACT

补充知识

窄缝的控制

Gap Model

Flow-Blocking

Flow-Modeling

Limitations

Contact Detection

Contact Marks

Contact Zones

Dynamic Mesh Events

手动控制

手动设置wall边界

手动设置多孔介质区域

小结
